Leopard-sensor

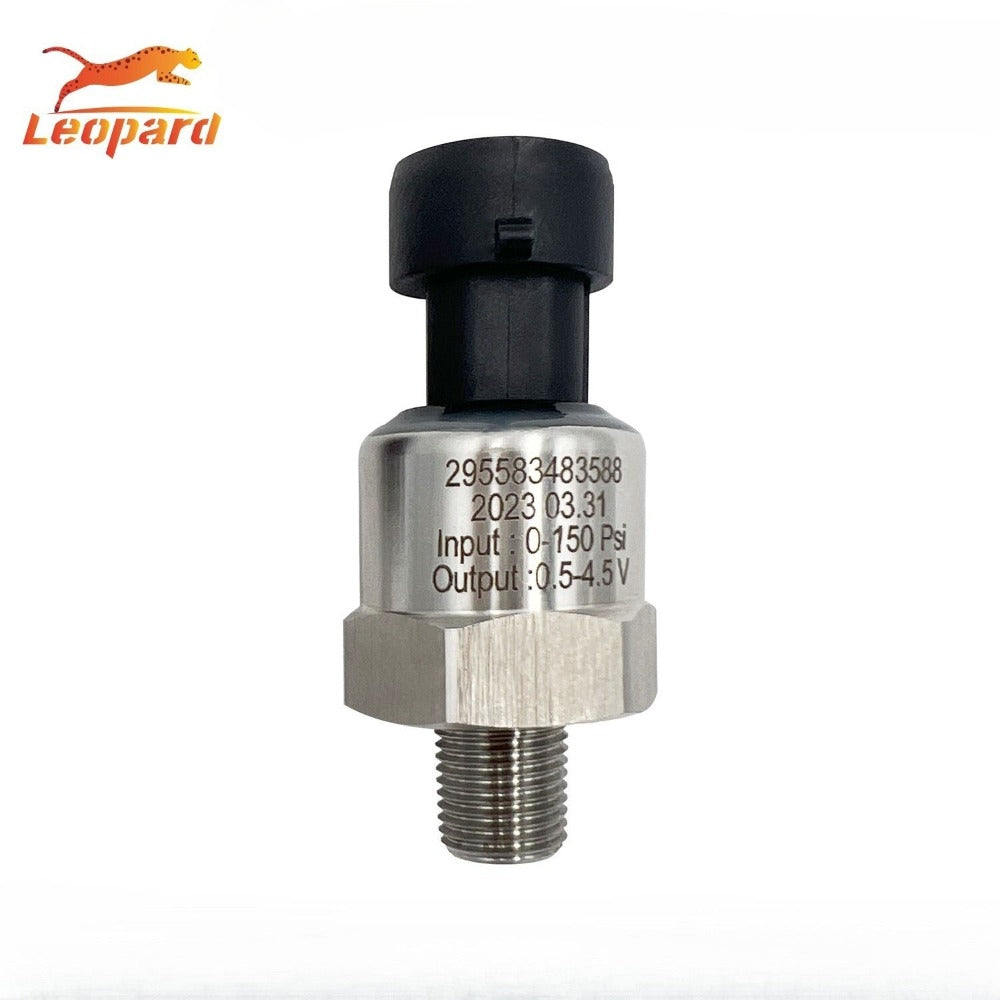

1/8NPT Stainless Pressure Transducer Sender Sensor For Oil Air Fuel Gas 150Psi
1/8NPT Stainless Pressure Transducer Sender Sensor For Oil Air Fuel Gas 150Psi
常规价格
$19.99 USD
常规价格
$19.99 USD
促销价
$19.99 USD
单价
/
单价
无法加载取货服务可用情况
Specifications:
Working Voltage 5.0 VDC
Output Voltage 0.5-4.5VDC
Working Current ﹤=10 mA
Working Pressure Range 0-150PSi
The Biggest Pressure Double the working pressure
Destroy Pressure Triple the working
Working TEMP.Range Celsius Degree
Storage Temperature Range 0-150Celsius Degree
Measuring Error +_ 1.5％FSO
Temperature Range Error +_ 3.5％FSO
Response Time ﹤=2.0 ms
Cycle Life 500.000times
Material: stainless steel and plastic
Compatibility:EN50081-1; EN50082-2; IEC61000-4-3
Interchange Part Number: 5VDC\
Clean Injection's pressure sensors combine the responsiveness and high quality demands for hardcore street or track
enthusiast looking for accurate and reliable results. Listing is for 1pc 0-150PSIG Clean Injection pressure sensor including pigtail connector.
Constructed with a stainless steel body and 1/8" NPT threads. Perfect for those running an aftermarket engine control units.
This sensor can be used with Fuel (e85 compatible) ,
Oil, nitrous, and air however is not recommended for water use.
package include:
only sensor (do not include cable or connector)
