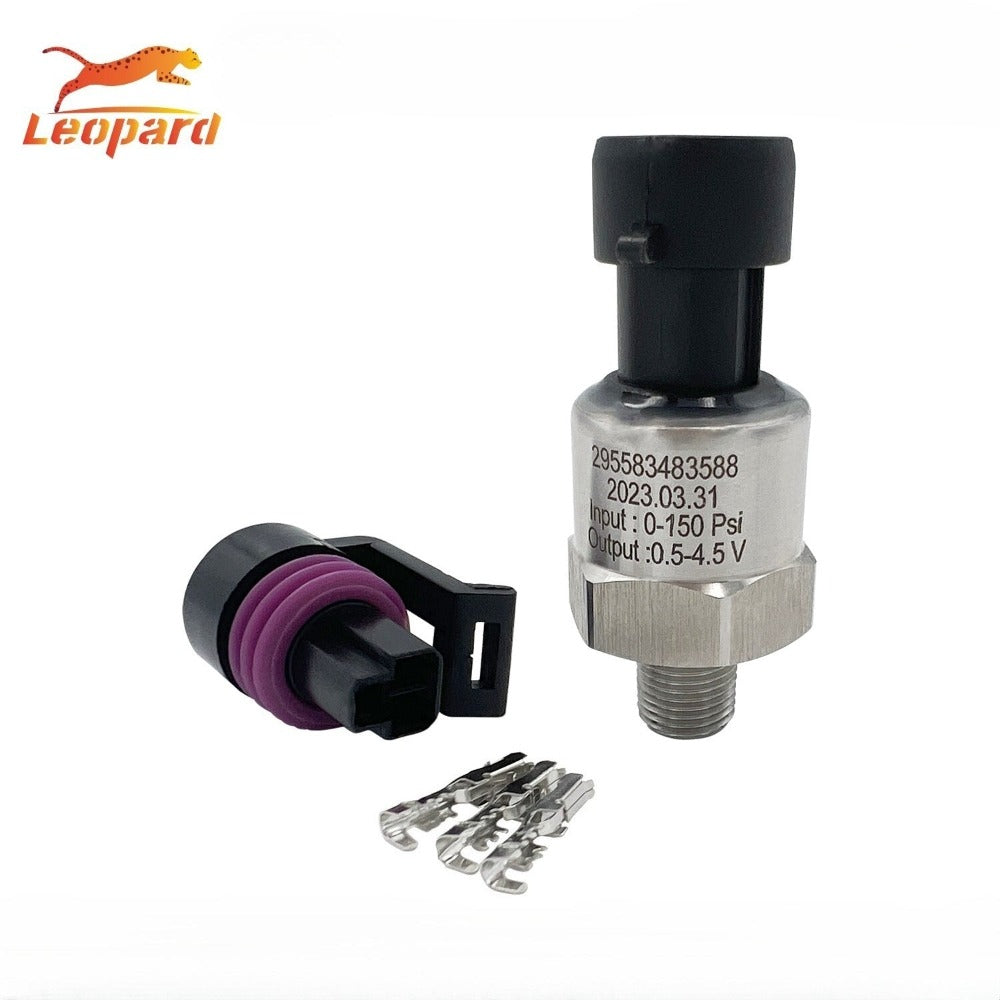

These universal high quality sending units feature an all stainless steel design (including diaphragm) and are designed to be used in a wide variety of situations where accurate pressure measurement are required.
Great for fuel pressure, oil pressure, manifold pressure, etc
Features include:
0 to 100 Psi positive pressure window
Stainless 316L body and diaphragm
1/8 NPT thread
24mm Hex
No internal rubber O-rings

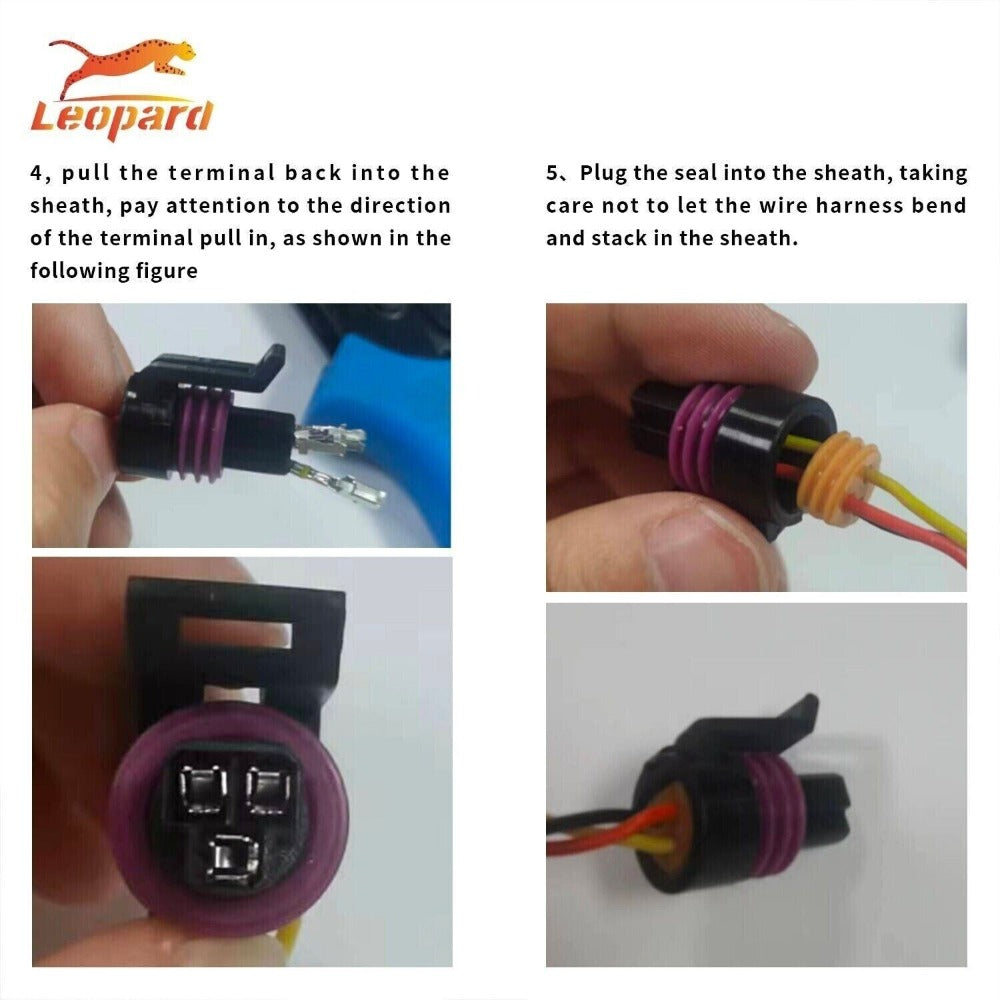

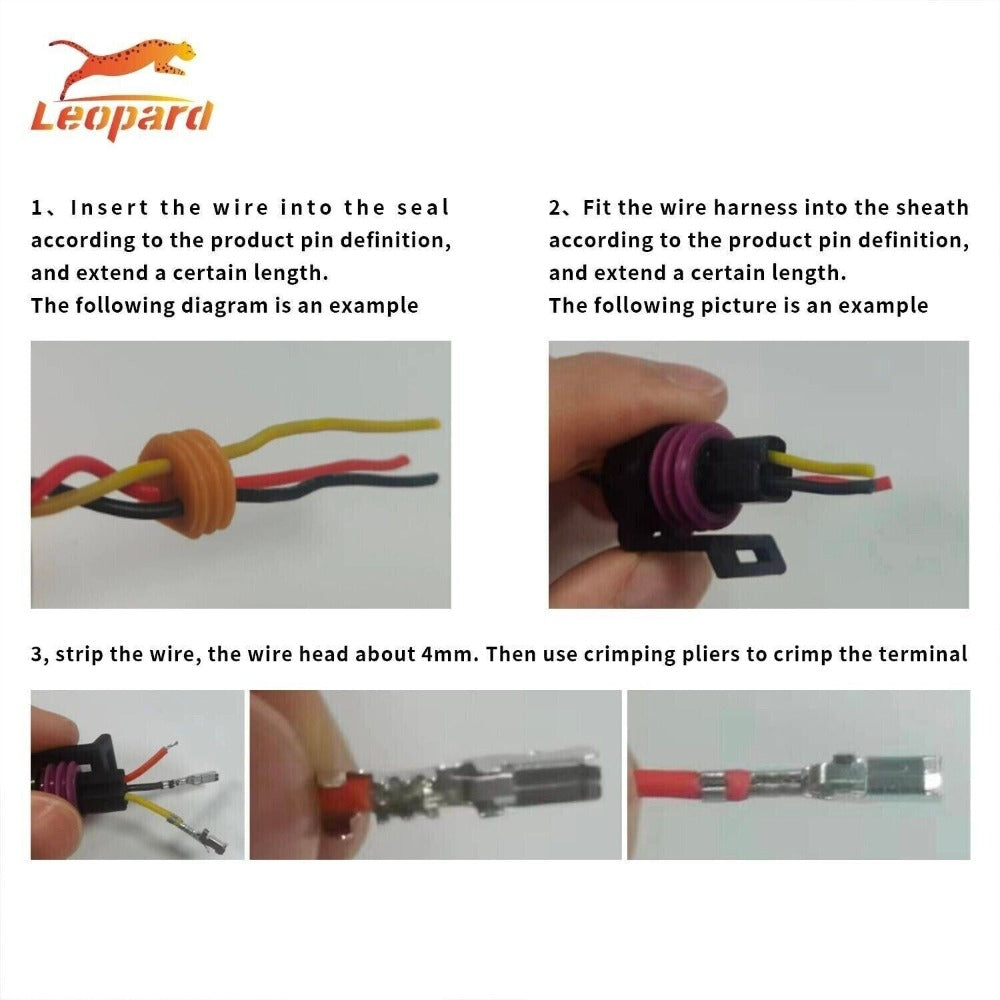

Includes a Delphi 3 pin connector

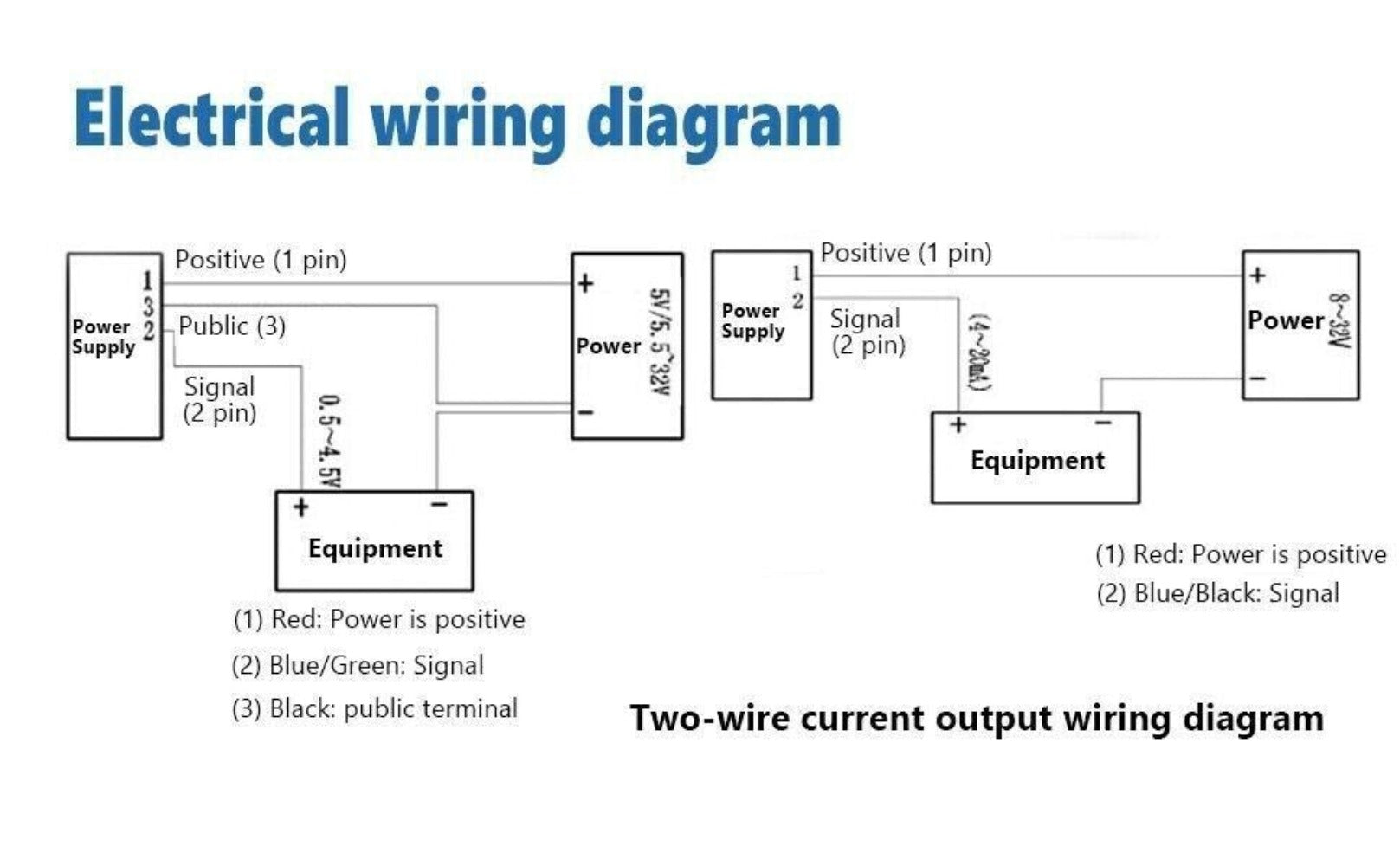

0.5 to 4.5 V Linear output
Laser welded
Compatible all pump fuels, methanol, E85, Ethanol, oil, hydraulic fluids, water, coolant, etc
Note: Remote mounting of these sensors is recommended as direct engine vibration will cause premature failure and void the warranty. This means the sensor cannot be mounted to anything that is directly attached to the engine (fuel rails, oil block adapters, etc). They can be mounted on oil filter relocators, fuel pressure regulators, etc. when isolated from the engine by hoses.
